APQ Focal Reducer Corrector for APQ 200/1600

Special six lens aspherical design (2xCaF₂) for APQ 200/1600 Polychromat
1120mm system focal length
f/5.6 focal ratio
Ø59.5mm (3.0°) flattened image field diameter without vignetting
≤ 3.3µm (365nm – 1014nm) / Ø59.5mm (3.0°) polychromatic RMS spot radius vs. field
Ultra broad band AR coating
130mm backfocus
Lens cell made of high quality aluminum alloy
Dovetail ring S108a on the telescope side
Thread M98x1i on the camera side

Price

on request

Delivery time

on request

Inquiry

Contact

Description
Specification
Downloads

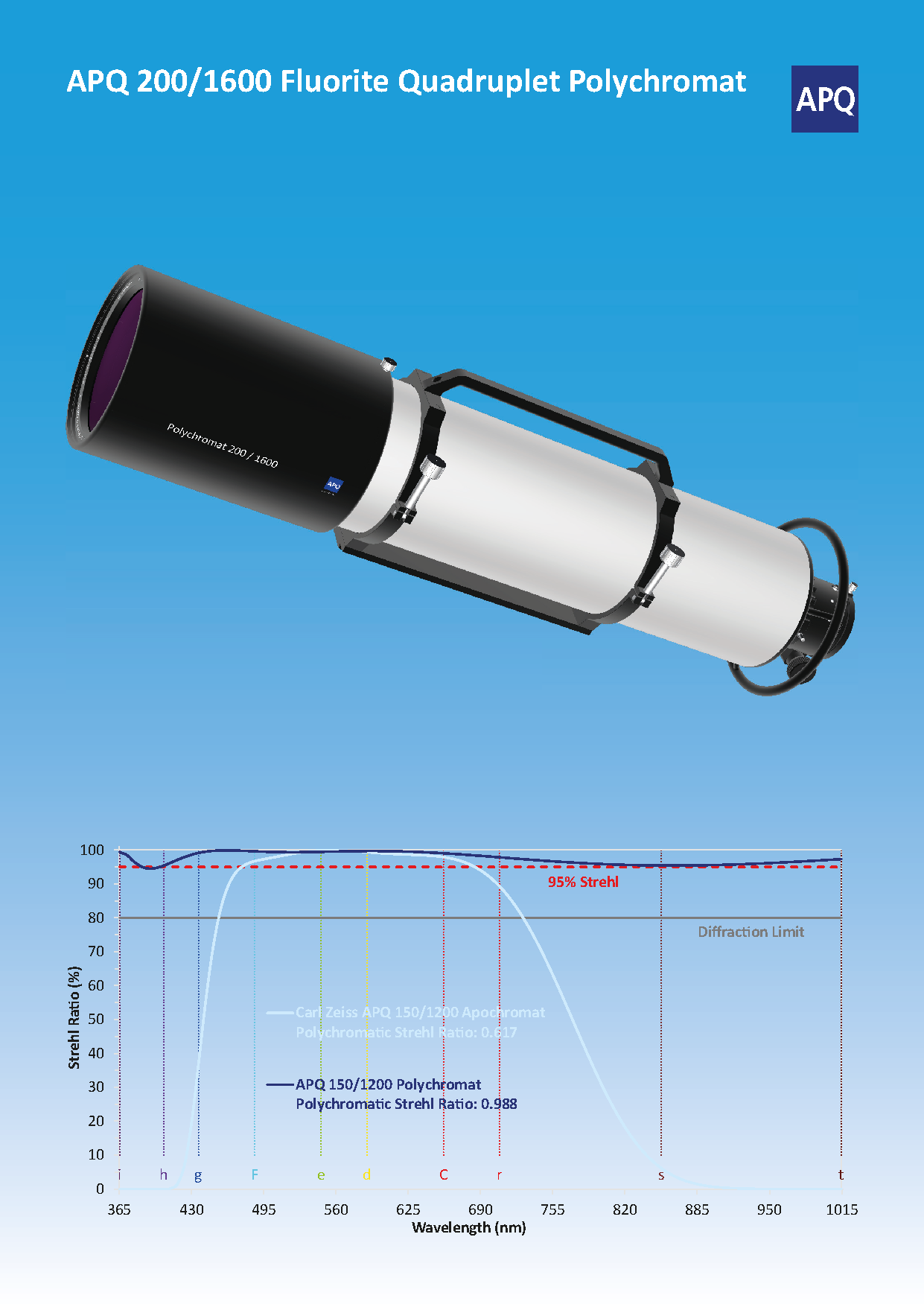

The APQ 200/1600 Fluorite Quadruplet Polychromat is a universal planetary refractor; a system of the highest possible image quality, in which the basic system represents the polychromatic objective.

Depending on the task of observation, the basic system is combined with the Polychromatic Field Corrector or Polychromatic Focal Reducer Corrector for the APQ 200/1600 Fluorite Quadruplet Polychromat.

The diffraction-limited correction is maintained in the spectral range from 365nm to 1014nm, so that the UBVRI spectral range of modern CCD and CMOS sensors can be fully utilized.

System focal length

1120mm

Focal ratio

f/5.6

Image scale

3.069'/mm or 0.326mm/'

Image field diameter

Ø59.5mm (3.0°)

Polychromatic RMS spot radius vs. field

≤ 3.3µm (365nm – 1014nm) / Ø59.5mm (3.0°)
(theoretical)

Maximum focal shift range

±0.002% (365nm – 1014nm)
(theoretical)

Anti-reflection coating

Ultra-ARB R_AVG < 0.7% (365nm – 1014nm)
(theoretical)

Number of lenses

6 (2xCaF₂)

Backfocus

130mm

Connection on the telescope side

Dovetail ring S108a

Connection on the camera side

Thread M98x1i
